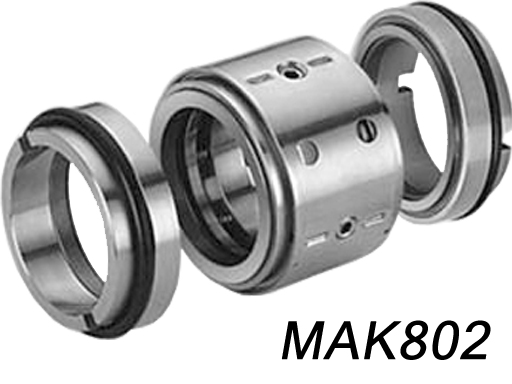

MAK802

Combined Materials:

Stationary Ring (Carbon/SiC/TC)
Rotary Ring (SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Metal Part (Steel)

Working Conditions:

Mediums: Muddy water, sewage water
and weakly corrosive fluids with solid grains.
Temperature: -20oC~180oC
Pressure: =1.0Mpa
Speed: = 13 m/Sec
