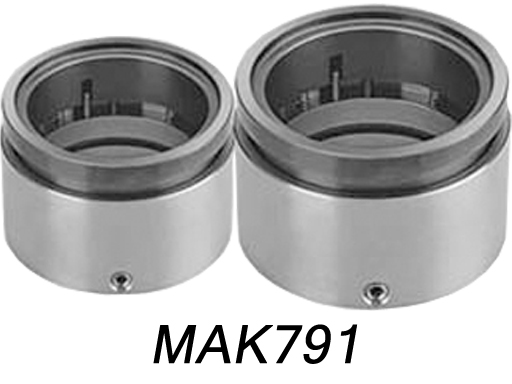

MAK791

Combined Materials:

Stationary Ring (Ceramic/SiC/TC)
Rotary Ring (Carbon/SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Metal Part (Steel)

Working Conditions:

Mediums: Grain and high viscosity mediums,
especially used in the sugar, pulp industry,
and sewage disposal,etc.
Temperature: -20oC~180oC
Pressure: =1.6Mpa Speed: = 15m/Sec
