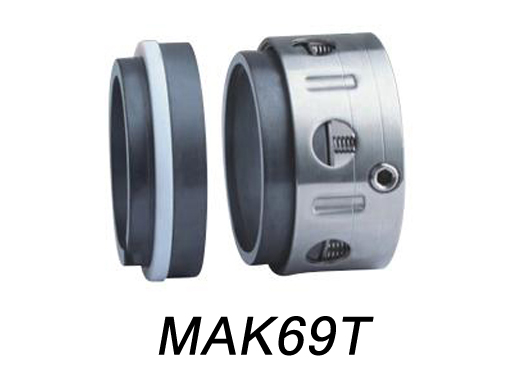

MAK69T

Operational Conditions:

Temperature:-40oC to +250oC
Pressure:=1.2MPa
Speed:=15m/s

Materials:

Stationary Ring: Silicon Carbide Reaction Bonded, Ceramic(Alumina),Silicon Carbide
Sintered Pressureless Rotary Ring: Antimony Impreg. Carbon Graphite, Resin Impregnated
Carbon Graphite(Furan),Silicon Carbide Reaction Bonded, Silicon Carbide Sintered
Pressureless
Secondary Seal: Pure PTFE
Spring and Metal Parts: Stainless Steel, Stainless Steel, Hastelloy C-4 Alloy

Applications

Strong corrosive fluids

•
•
