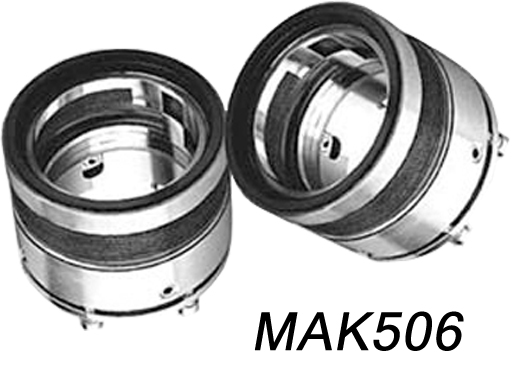

MAK506

Combined Materials:

Stationary Ring (SiC/TC)
Rotary Ring (Carbon/SiC/TC)
Secondary Seal (Graphite)
Bellow (AM350/Lnone1718)
Metal Part (Stainless Steel 304, 316)

Working Conditions:

Mediums: Oil, light hydrocarbon, aromatic
hydrocarbon,organic solvents, weak acids, alkali,
Ammonia, etc.
Temperature: -75oC~400oC
Pressure: =2.0Mpa(Single) =6.0Mpa(Double)
Speed: = 23m/Sec

•
•
