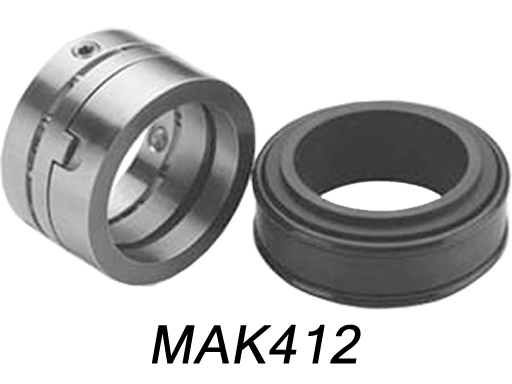

MAK412

Combined Materials:

Stationary Ring (Carbon/SiC/TC)
Rotary Ring (Steel/SiC/TC)
Secondary Seal (NBR/EPDM/Viton/Teflon)
Spring and Metal Part (Steel)

Working Conditions:

Mediums: Water, oil, weak acid, weak alkali, etc.
Temperature: -30oC~200oC
Pressure: =1.2Mpa
Speed: = 20m/Sec
