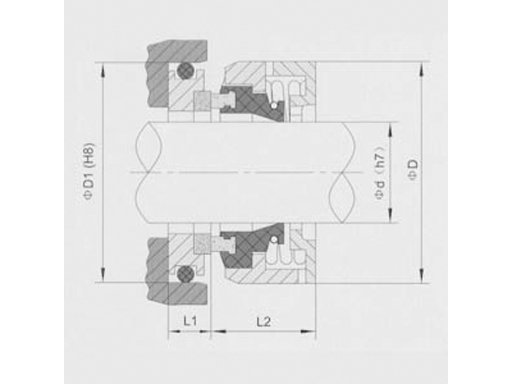

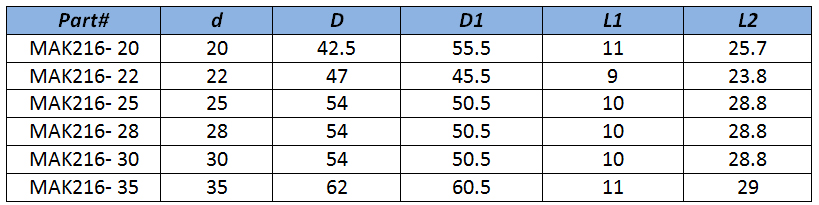

MAK216

Combined Materials:

Stationary Ring (SiC/TC)
Rotary Ring (SiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Retainer (Steel and plastic
or Cast Aluminum Alloy.)

Working Conditions:

Mediums: Water, oil and weakly-
corrosive mediums.
Temperature: -20oC~200oC
Pressure: =0.5Mpa
Speed: = 5 m/Sec
