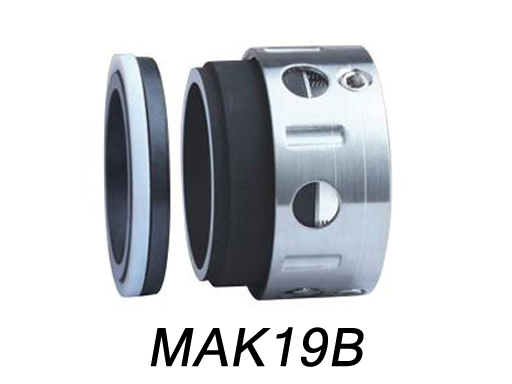

MAK19B

Operational Conditions:

Temperature:-40oC to +250oC
Pressure:=2.5MPa
Speed:=15m/s

Materials:

Stationary Ring: Silicon Carbide Reaction Bonded, Ceramic(Alumina),Silicon Carbide
Sintered Pressureless
Rotary Ring: Antimony Impreg. Carbon Graphite, Resin Impregnated Carbon Graphite
(Furan), Silicon Carbide Reaction Bonded, Silicon Carbide Sintered Pressureless
Secondary Seal: Pure PTFE
Spring and Metal Parts: Stainless Steel, Stainless Steel, Hastelloy C-4 Alloy

Applications

Strong corrosive fluids

•
•
