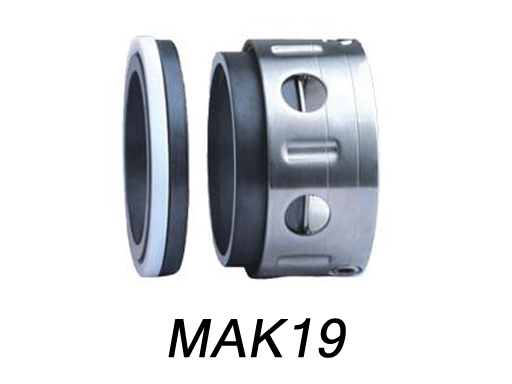

MAK19

Operational Conditions:

Temperature:-40oC to +250oC
Pressure:=1.2MPa
Speed:=15m/s

Materials:

Stationary Ring:Silicon Carbide Reaction Bonded,Ceramic(Alumina),Silicon Carbide
Sintered Pressureless
Rotary Ring:Antimony Impreg. Carbon Graphite,Resin Impregnated Carbon Graphite
(Furan), Silicon Carbide Reaction Bonded,Silicon Carbide Sintered Pressureless
Secondary Seal:Pure PTFE
Spring and Metal Parts:Stainless Steel,Stainless Steel,Hastelloy C-4 Alloy

Applications

Strong corrosive fluids

•
•
