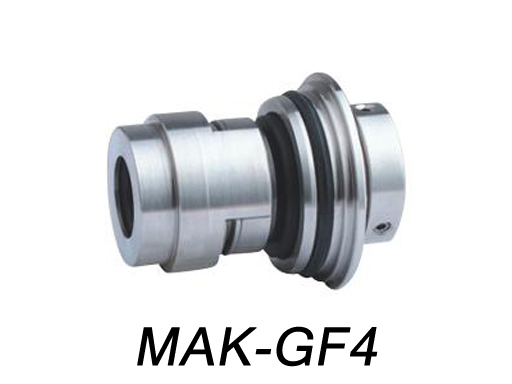

MAK-GF4

Description:

MAK-GF4 is the mounted semi-cartridge seal with a single
spring o-ring and push-fit head.
Suitable for Grundfos CR, CRN, and CRI series Pumps

Operational Conditions:

Temperature: -30oC to +200oC
Pressure: =2.5MPa
Speed: =25m/s

Materials:

Stationary Ring: Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Size:

22mm
