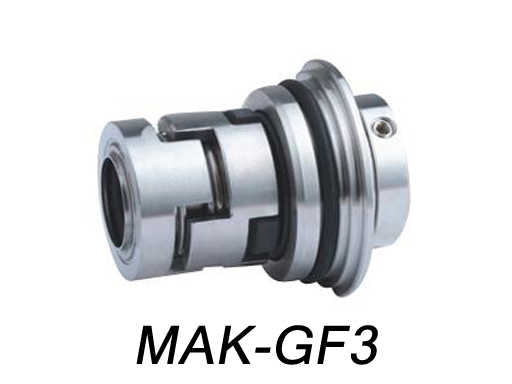

MAK-GF3

Description:

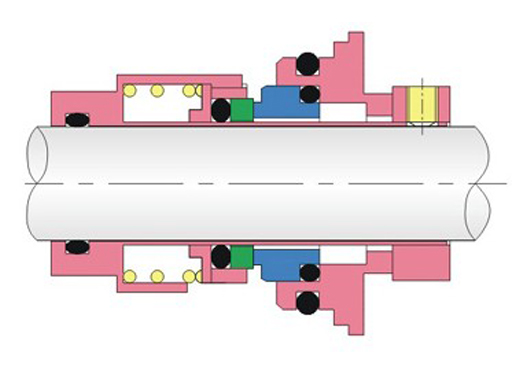

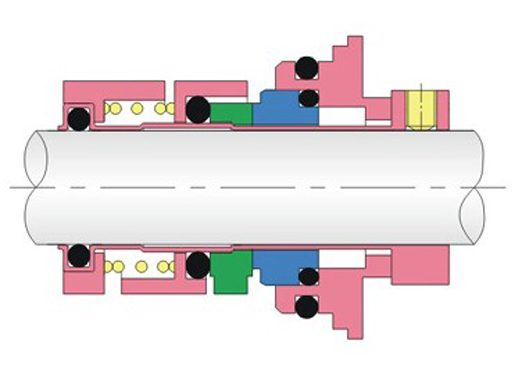

MAK-GF3 is an original Grundfos seal with single spring
o-ring Mounted semi-cartridge seals with push-fit
head Suitable for Grundfos Pumps

Operational Conditions:

Temperature: -30oC to +200oC
Pressure: =2.5MPa
Speed: =25m/s

Materials:

Stationary Ring: Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Size:

22mm
