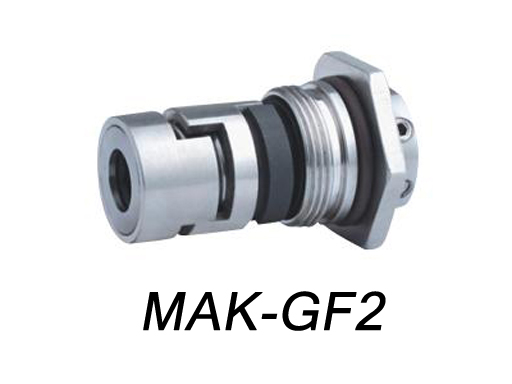

MAK-GF2

Description:

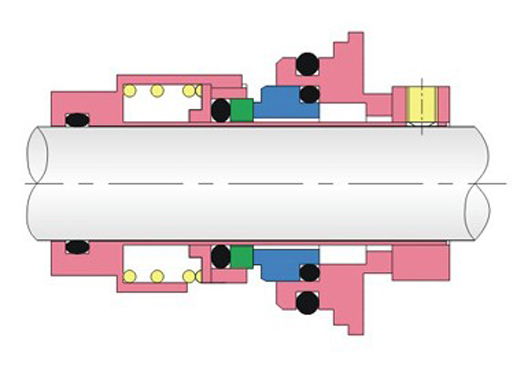

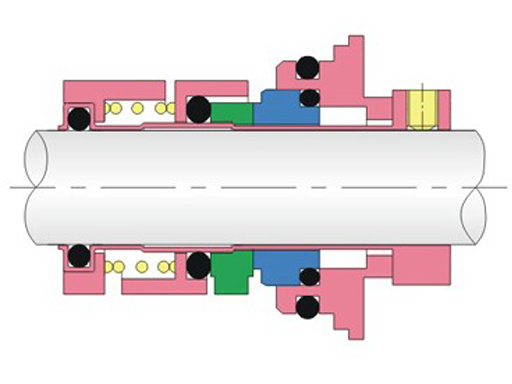

MAK-GF2 is the mounted semi-cartridge seal with single
spring o-ring and threaded Hex-head.
Suitable for Grundfos CR, CRN, and CRI series pumps

Operational Conditions:

Temperature: -30oC to +200oC
Pressure: =2.5MPa
Speed: =25m/s

Materials:

Stationary Ring: Silicon Carbide, TC
Rotary Ring: Carbon, Silicon Carbide, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel

Size:

12mm, 16mm
